AS-Schneider valves are being successfully used at the Amal oilfield in Oman which uses steam generated at the Miraah solar thermal facility. Steam injection is a common enhanced oil recovery method.
Mature oil fields use enhanced oil recovery (EOR) to boost production. Steam injection is an EOR technique widely used in the Middle East. High temperature steam is injected into the well to heat up the subsurface oil.
The oil production from a heated well increases due to the effects of lower viscosity, vaporisation and thermal expansion.
Metal-to-metal seated ball valves have traditionally been used for this high temperature application. These valves can be difficult to procure as they are made from special alloys and require a specialised coating process. AS-Schneider offers Double Block and Bleed valves with a bigger bore globe type needle valve. These DBB valves are faster to produce as they do not require special third-party components.
AS-Schneider valves are being successfully used at the Amal oilfield in Oman. which uses steam generated at the Miraah solar thermal facility.
Boosting recovery from aging oil fields is a major challenge in oil production. As production starts to taper off, oil companies must employ enhanced oil recovery (EOR) techniques. Using EOR technology, production can be increased to keep the field economically viable.

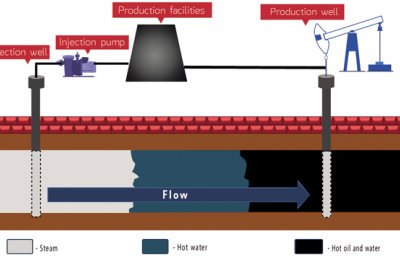

EOR can help extract up to 60% of a reservoir’s oil – compared to 40% using primary and secondary extraction methods. In the Middle East, steam injection has been successfully used as an EOR technique for the recovery of heavy viscous oil. Steam is injected into the reservoir to heat up the subsurface oil. The process boosts recovery due to viscosity reduction, vaporisation and thermal expansion of the oil.
Traditionally, natural gas is burned to produce the EOR process steam. The oil and gas industry, however, is under increasing public and regulatory pressure. Worsening climate change blamed on greenhouse gas emissions from the use of its products. The additional use of fossil fuel, during the extraction process, exacerbates the environmental concerns.
Solar thermal energy for steam generation is a clean and environment-friendly alternative to burning natural gas. This method uses mirrors to reflect and concentrate solar radiation on to receivers that convert solar energy to heat.
The clean energy is then used for the EOR process steam generation. The solar thermal approach not only reduces the carbon footprint of the extraction process but also lowers the cost of extraction. An increasing number of gulf state oil companies are working on replacing natural gas-based steam generation. A solar steam process is part of their environmental agenda.
A prime example is the solar steam generator at the Miraah Solar Plant in Oman which is one of the largest solar plants in the world. Boasting a solar thermal capacity of 1,021 MW, the plant has a daily steam output of up to 6,000 tonnes.
That translates into annual gas savings of 1.6 TWh and annual CO2 emission savings of 300,000 tonnes. The 6,000 tonnes of solar steam generated daily at Miraah constitutes a substantial portion of the EOR steam requirements at the Amal oilfield operated by Petroleum Development Oman (PDO). The steam EOR increases the well productivity at Amal by 300%.
The design temperature for steam injection wells is typically in excess of 400° C. At these high temperatures, the hardness of the valve material is reduced and its fatigue-resistance is compromised. Small cracks may appear which can propagate across the section causing failure. Valves with O-rings and thermoplastic seals are unsuitable for use in this temperature range. High-temperature, high-pressure applications demand that valves have a specialised design and construction.
Metal-to-metal seated ball valves, with a larger bore and fire safe graphite sealing, are generally used as isolation valves in steam EOR application. These valves are constructed from special alloys and are protected with a heat, corrosion and wear-resistant coating/cladding, applied using a specialised process.
Some valve manufacturers can take several weeks to supply such valves. A ball-set (ball + seat) must be ordered from third-party suppliers. In the event of an unplanned shutdown, procurement and replacement of these special purpose valves can become a challenge for the maintenance team.
The cost of using these valves can be high both, in terms of the procurement cost, and the production loss suffered while waiting for a replacement to arrive.
Maintenance and safety protocols demand periodic service and replacement of critical valves. In steam injection wells, pressure transmitter / pressure gauge (PT/PG) isolation valves are of critical importance. Based on customer demand, AS-Schneider has developed a bigger bore globe type needle valve in Double Block and Bleed (DBB) configuration that is ideally suited to this application.-- TradeArabia News Service
